Asteknik > Ürünlerimiz > Rayba

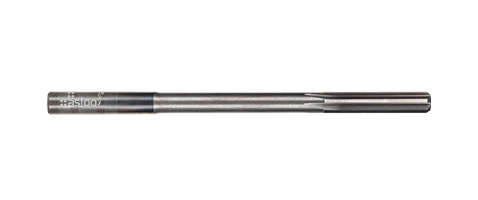

Rayba / DIN 212 Seri

Kaplamasız / Kaplamalı


Mikrograin ISO K 10/20

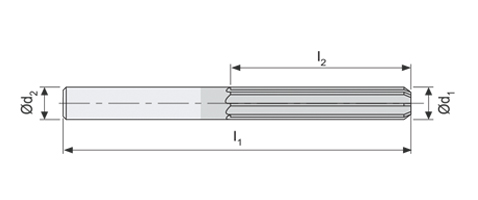

Malzeme Kodu D1 D2 L2 L1 Ağız Sayısı
Kaplamasız Kaplamalı
ASRA01-040000 ASRA11-040000 4 4 19 75 4
ASRA01-045000 ASRA11-045000 4,5 5 19 75 4
ASRA01-050000 ASRA11-050000 4 5 23 83 4
ASRA01-055000 ASRA11-055000 5,5 6 23 83 4
ASRA01-060000 ASRA11-060000 6 6 26 93 4
ASRA01-065000 ASRA11-065000 6,5 7 26 93 4
ASRA01-070000 ASRA11-070000 7 7 31 109 4
ASRA01-075000 ASRA11-075000 7,5 8 31 109 4
ASRA01-080000 ASRA11-080000 8 8 33 117 4
ASRA01-085000 ASRA11-085000 8,5 9 33 117 6
ASRA01-090000 ASRA11-090000 9 9 36 125 6
ASRA01-095000 ASRA11-095000 9,5 10 36 125 6
ASRA01-100000 ASRA11-100000 10 10 38 133 6
ASRA01-105000 ASRA11-105000 10,5 11 38 133 6
ASRA01-110000 ASRA11-110000 11 11 41 142 6
ASRA01-115000 ASRA11-115000 11,5 12 41 142 6
ASRA01-120000 ASRA11-120000 12 12 44 151 6
ASRA01-125000 ASRA11-125000 12,5 13 44 151 8
ASRA01-130000 ASRA11-130000 13 13 44 151 8
ASRA01-135000 ASRA11-135000 13,5 14 44 151 8
ASRA01-140000 ASRA11-140000 14 14 47 160 8
ASRA01-145000 ASRA11-145000 14,5 15 47 160 8
ASRA01-150000 ASRA11-150000 15 15 50 162 8
ASRA01-160000 ASRA11-160000 16 16 50 162 8
ASRA01-180000 ASRA11-180000 18 18 56 182 8
ASRA01-200000 ASRA11-200000 20 20 60 195 8
